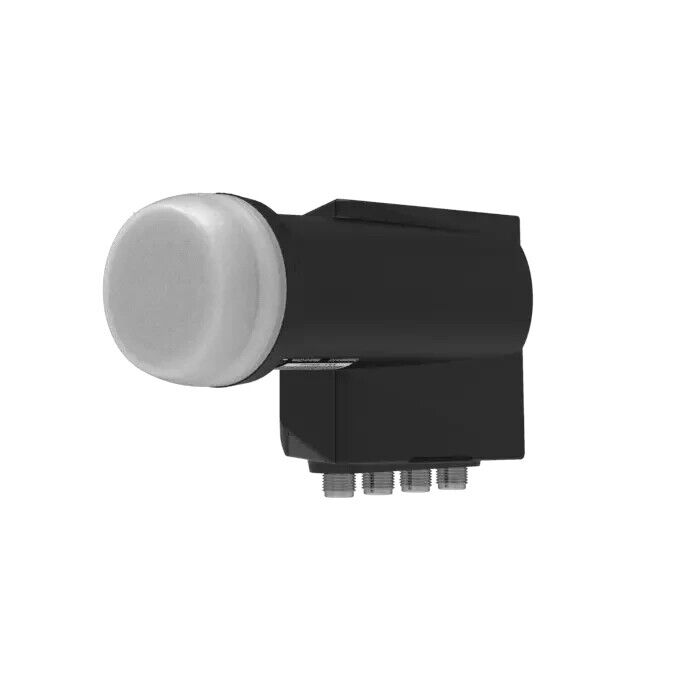

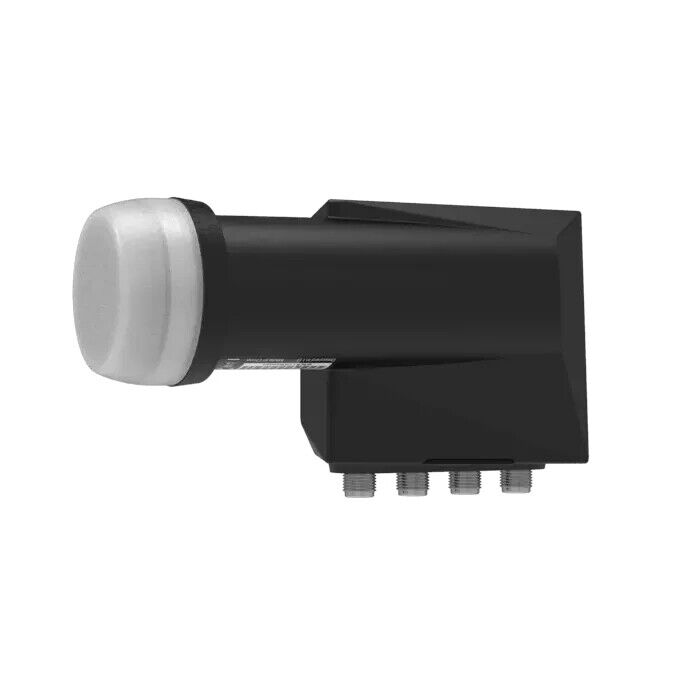

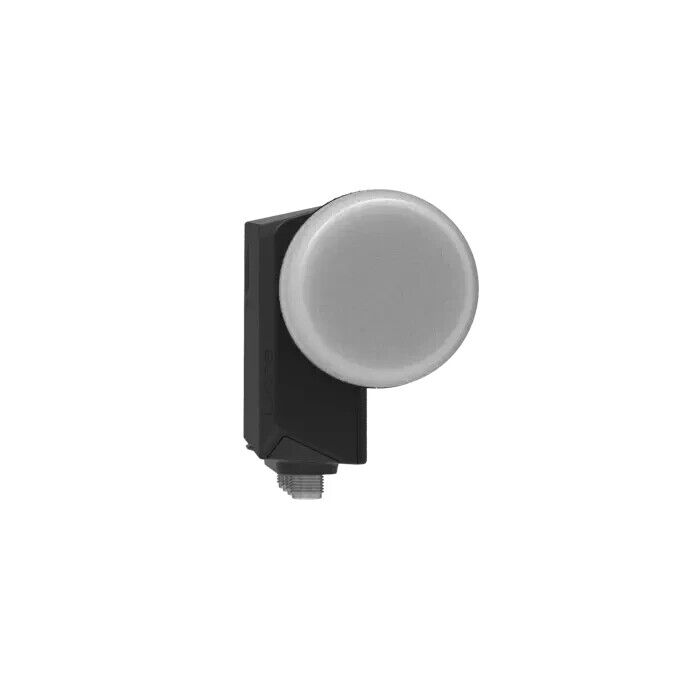

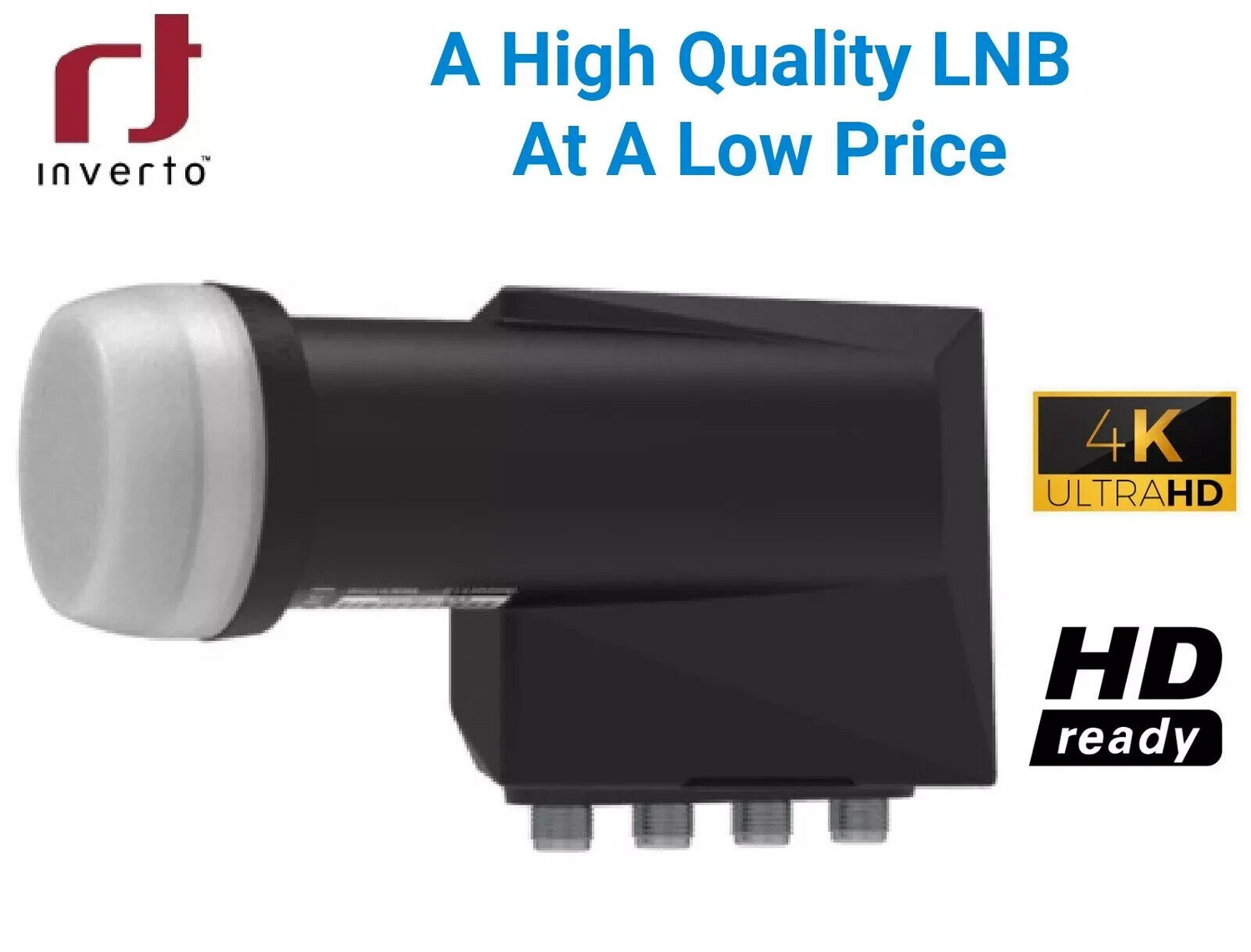

Inverto Black Ultra 0.2db Quad LNB With PLL Technology IDLT-QTL412-ULTRA-OPN

Inverto’s latest 2022 high-performance Ultra LNBs were specifically designed to address the need for superior reception under the edges of the satellite footprint skirt, small dish sizes or long coax cables. Thanks to its novel feed horn design and superior front-end components, this LNB provides higher conversion gain yet with low noise figure and best phase noise performance.

The combination of innovative feed horn design, higher spec components, excellent cross polarization isolation and advanced filter design enables improved handling of interfering and spurious signals.

This LNB provides a leap in the overall reception performance compared with standard LNBs, enabling the reception of signals from one satellite, its distribution to four Set Top Boxes with Single Tuner (or two STB with Twin Tuner each) and is ready for Ultra High Definition TV transmissions in 4K or 8K resolution. Designed to meet strict specifications and manufactured to the highest industry standards, this unique range of LNBs is an ideal solution for installations with challenging reception conditions.

.

Main Features:

.

Novel feed horn design

Superior Phase Noise performance, DVB-S2X compliant supporting Ultra HD (4K and 8K) TV

Excellent Cross Polarization Isolation

Very Low Spurious Levels

Superior Noise Figure with high Conversion Gain

High 4G Immunity

Ultimate Reliability

.

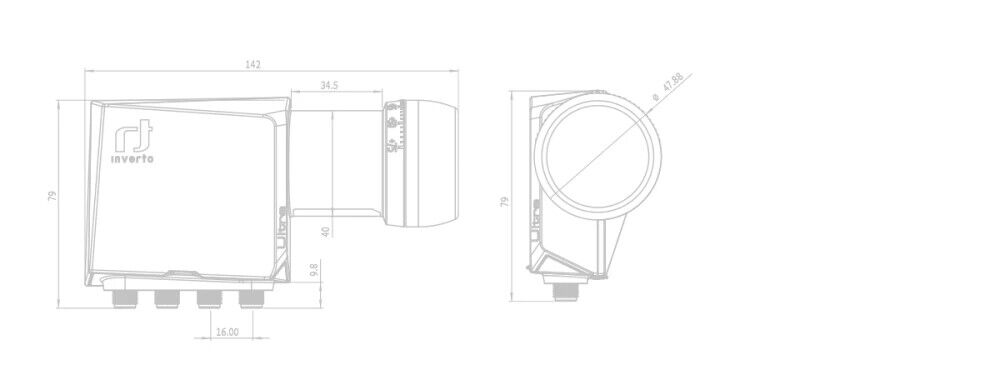

Technical specifications:

.

Low band input frequency range 10.7 GHz ~ 11.7 GHz

Low band output frequency range 950 MHz ~ 1950 MHz

Low band LO frequency 9.75 GHz

High band input frequency range 11.7 GHz ~ 12.75 GHz

High band output frequency range 1100 ~ 2150 MHz

High band LO frequency 10.6 GHz

Noise figure 0.2 dB typ. (0.7 dB max.)

LO temperature drift ± 2.0 MHz max.

LO initial accuracy ± 1.0 MHz max.

LO phase noise @ 1 kHz -70 dBc/Hz

LO phase noise @ 10 kHz -80 dBc/Hz

LO phase noise @ 100 kHz -90 dBc/Hz

LO phase noise @ 1 MHz -100 dBc/Hz

Conversion gain 60 ~ 70 dB

Gain ripple (over 26 MHz bandwidth) 1 dB max. (peak-to-peak)

Gain variation (over full band) 4 dB max. (peak-to-peak)

Image rejection 50 dB min.

3th order intermodulation - ICP3 +10 dBm min

1 dB compression point (@ output) 0 dBm min.

Cross polarization isolation 22 dB min.

Control signal Ca (V) 10.0 V ~ 14.0 V

Control signal Cb (H) 16.0 V ~ 20.0 V

Control signal Cc (band switching) 22 kHz ± 4 kHz

Output VSWR 2.0 : 1 max.

In band spurious level -65 dBm max.

Current consumption 200 mA max. (10 VDC ~ 20 VDC)

Operating temperature -30 °C ~ +60 °C

Output impedance 75 Ω (F-type)

Output connector type F-Type (female)

Weight 177.4 g
